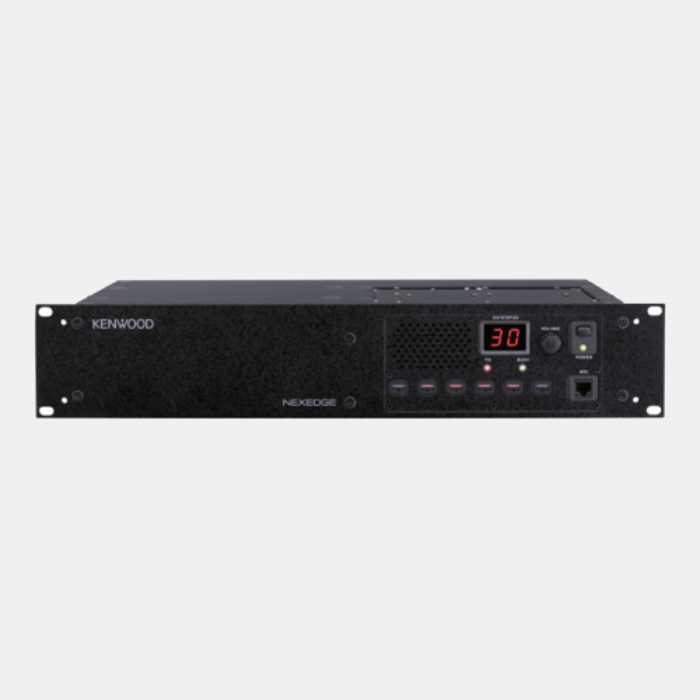

NXR-710

The NXR-710 is a NEXEDGE VHF digital repeater from Kenwood. 30 Channels are present in conventional mode, with both NXDN Digital Conventional and FM Analogue modes being able to operate on the same channel. A 2-Digit LED display is present on the front of the radio, this alongside 6 programmable function keys that allow for the customization of the repeater to the users needs from their system.

The NXR-710MPSD is available with 30 channels programmable to 136-174MHz VHF frequencies. It features built-in 16 QT/DQT repeater control, built-in scrambler, 12.5 kHz channels, hang timer, timeout timer and CW ID in FM conventional mode. It has an NXDN® Digital Air Interface with AMBE=2™ VOCODER with 6.25 kHz channels and 16 RAN Repeater Control in digital conventional mode.

The NXR-710 benefits from a variety of NEXEDGE features, this including having a 16 RAN repeater controller built in. 1000 GIDs and UIDs are available per site, and also having an NXDN scrambler. A microphone jack is present on the front panel allowing for the use of an external accessory, with the overall design meeting the industry standard for a 19” rack mount.
